Why Load Distribution Matters
When designing a vibration isolation system, engineers often begin by calculating the total equipment weight. While this is an important first step, it does not provide the complete picture.
The way the load is shared across each support point has a direct impact on how effectively anti-vibration pads perform.
Understanding Load Distribution
Load distribution refers to how the weight of an equipment is transferred to each individual support point.
In many HVAC installations, equipment is supported on multiple mounting points. Ideally, each support carries its intended share of the load. However, uneven equipment geometry, piping connections, or installation conditions can result in some supports carrying significantly more load than others.

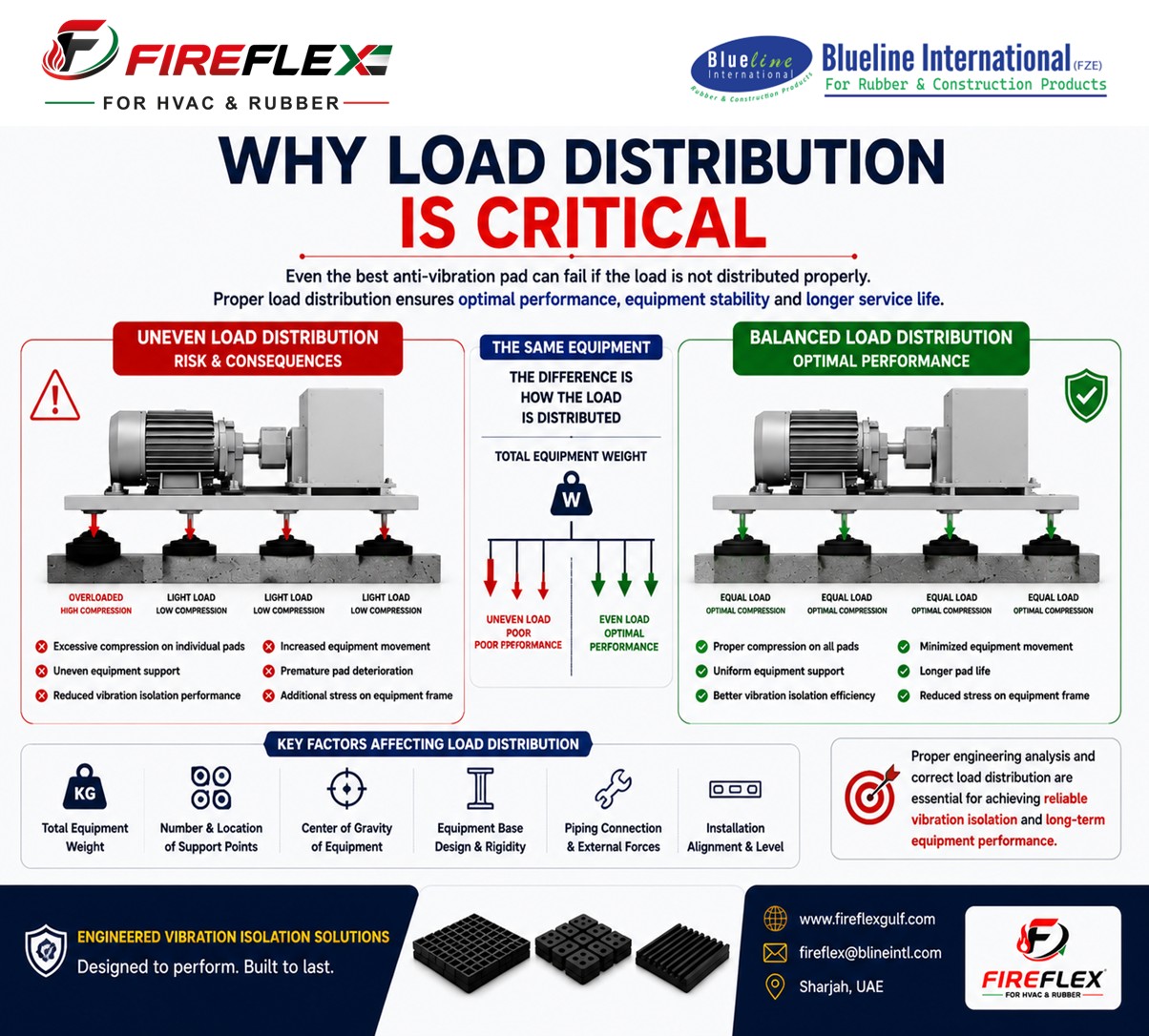

What Happens When Load Distribution Is Uneven?
Poor load distribution can lead to:
- Excessive compression of individual anti-vibration pads
- Uneven equipment support
- Reduced vibration isolation efficiency
- Increased equipment movement
- Premature pad wear
- Additional stress on equipment frames and supporting structures
These issues may shorten the service life of both the vibration isolation system and the equipment it supports.
Engineering Considerations
Proper anti-vibration pad selection should consider:
- Total equipment weight
- Number of support points
- Load at each support
- Equipment centre of gravity
- Static deflection
- Dynamic loading
- Installation conditions
Evaluating these factors helps ensure that every support performs as intended.
FireFlex Engineering Approach
At FireFlex, vibration isolation solutions are selected based on engineering analysis rather than equipment weight alone.
By understanding how loads are distributed across support points, we help provide solutions that improve equipment stability, reduce vibration transmission, and support long-term HVAC system reliability.
Frequently Asked Questions
What is load distribution?
Load distribution is the way equipment weight is shared across each support point in a vibration isolation system.
Why is load distribution important for anti-vibration pads?
Even load distribution helps ensure that each pad operates within its design limits, improving vibration isolation and equipment stability.
Can uneven load distribution damage anti-vibration pads?
Yes. Overloaded support points may experience excessive compression and premature wear, while lightly loaded pads may not perform as intended.
